LFX-NEON-2222-3DB

YYZ LFX Neon series is designed to provide a very bright, crisp consistent and homogenized illumination that will accentuate any building, structure, or artistic flourish. Using high brightness surface mounted LEDs, behind a first-class eco-friendly UV-resistant Silicone polymer encapsulated flexible chamber material, the LFX Neon will provide your project with bright, consistent traces of light in shades of White, single colors. The fixture consists of uniform and even lighting with no LED hotspot. LFX Neon has a transverse minimum radius of 40mm and is horizontal bendable. Easy to install, can be cut and reconnected with an IP68-protected connector. The product is supplied in 5m standard rolls or custom as needed.

Technical data

Print technical data
  • complies with the European standard
  • IP67
  • UL
LIGHT SOURCE SMD LED 2835
MOUNTING Surface Mount / Recessed
LED COLOR 1800K, 2100K, 2400K, 2700K, 3000K, 3500K, 4000K, 5000K, 6500K
IP RATING IP67
IK RATING IK10
RATED POWER 8.5 W/m
BEAM ANGLE 120°
BODY MATERIAL Silicone
BODY FINISH White
LAMP LIFE 50,000 Hrs
CONNECTION Outdoor rated connections
CUTTING INCREMENTS 50 mm (2 in.)

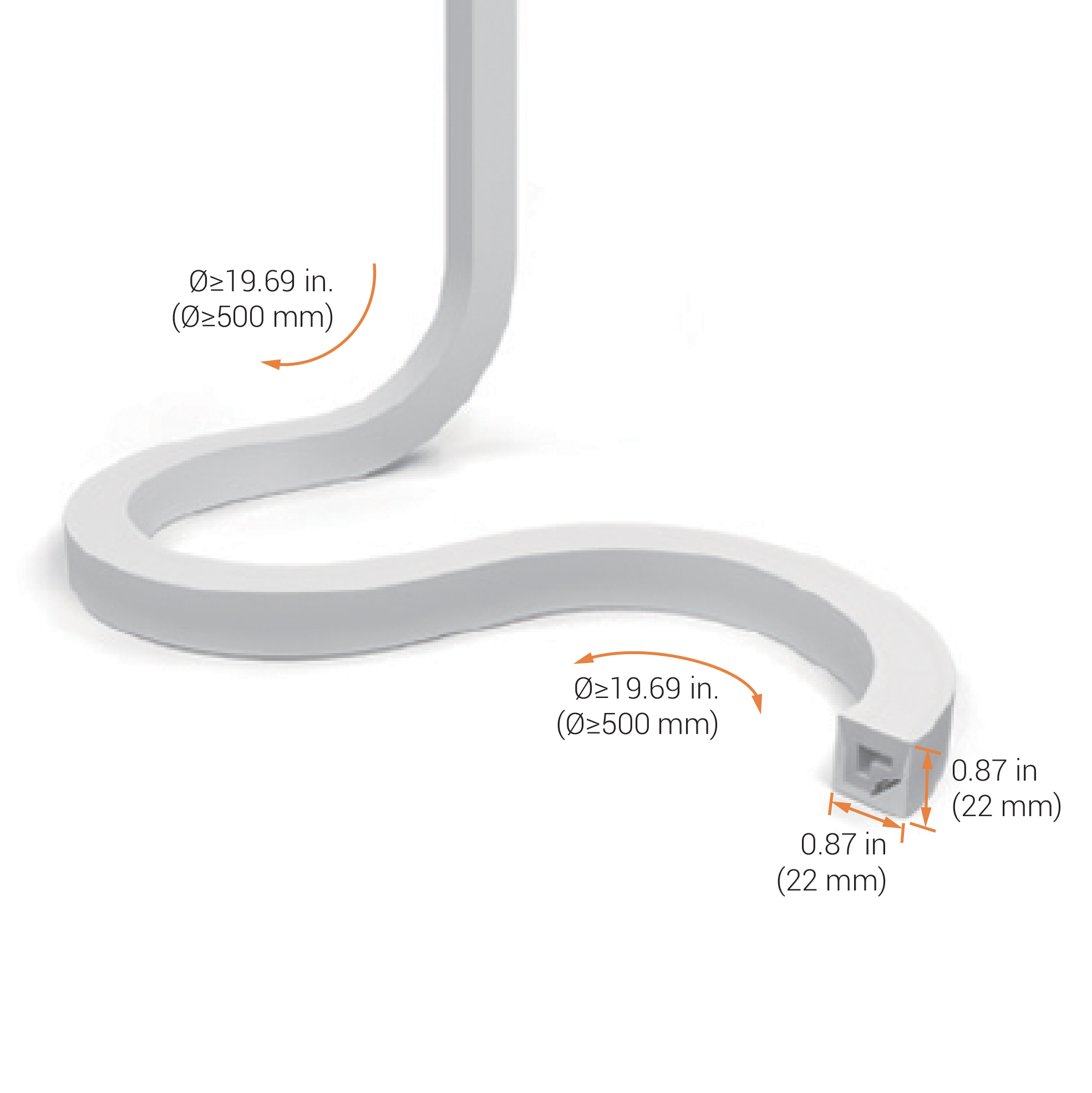

DIMENSIONS 22 mm (W) x 22 mm (H) / 0.87in(W) x 0.87 in (H)
MAX DAISY RUN 16.4 ft (5 m)
SUPPLY VOLTAGE 24V DC
BINNING TOLERANCE One Bin
DRIVER / POWER SUPPLY DETAILS Switched
0-10V
DALI
DIMMING Switched, 0-10V, DALI
CRI >90
