DCS-IP65
YYZ Discus series of architectural downlight features glare free performance with the ultra wide beam angle. Available in variety of sizes to accommodate wattage. Making it versatile for applications with ceiling heights.
Technical data
Print technical data
- IP65
| LIGHT SOURCE | Samsung (SMD) / Philips (COB) |
|---|---|
| MOUNTING | CEILING RECESSED |
| LED COLOR | 2700/3000/4000/5000/6000K |
| IP RATING | IP65 |
| DELIVERED LUMEN |
100-105 lm/W |
| RATED POWER | 7 / 10 / 15 / 20 / 25 / 30 / 40 / 50W |
| BEAM ANGLE | 60°, 90° |
|---|---|
| BODY MATERIAL | ALUMINUM |
| BODY FINISH | White ring + Grey, Ash silver |
| LAMP LIFE | 50,000 Hrs |
| CONNECTION | OUTDOOR RATED CONNECTIONS |
| CUTTING INCREMENTS | Ø3.54” / Ø4.72” / Ø6.3” / Ø7.87” |

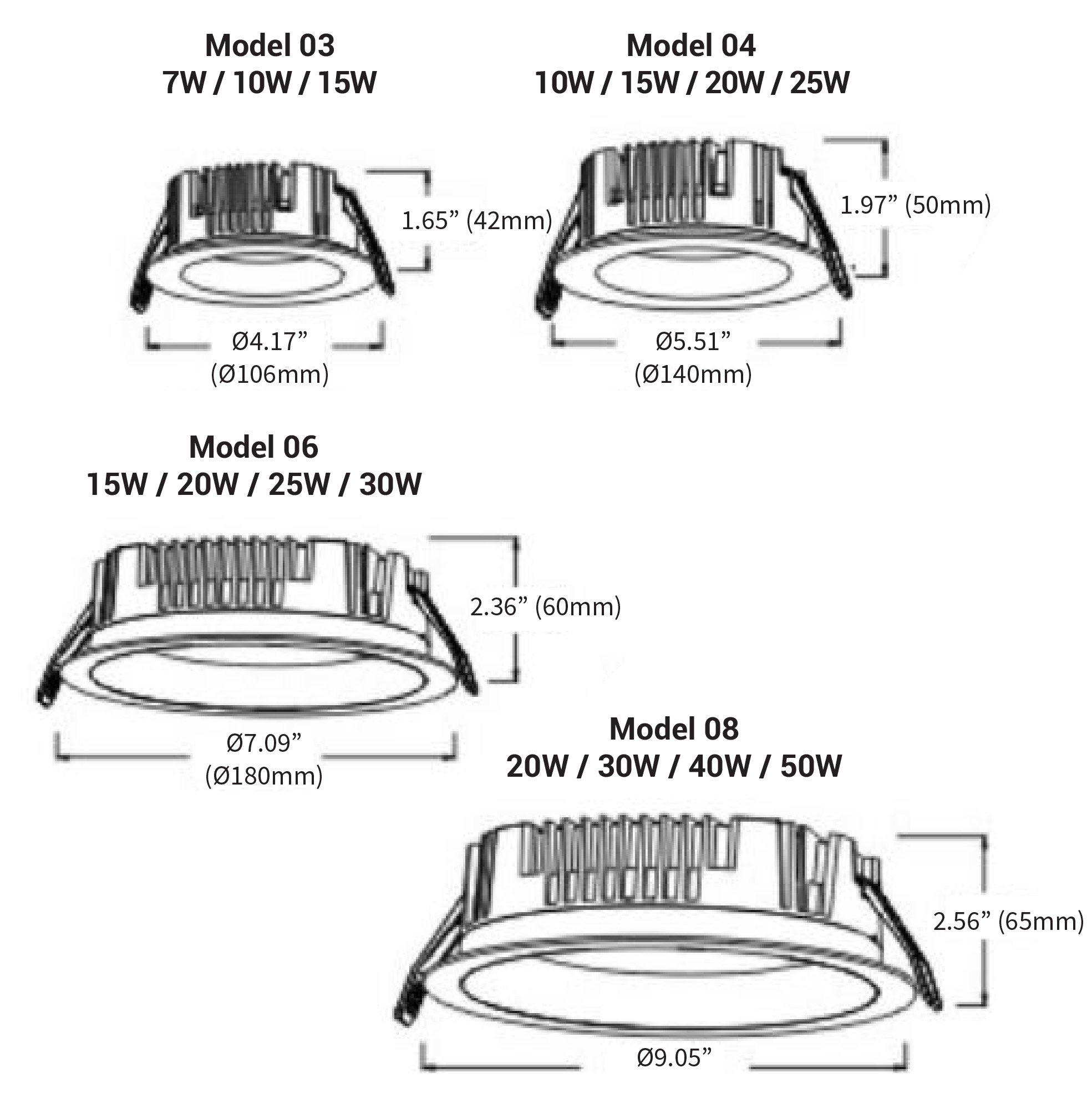

| DIMENSIONS | Ø4.17 x 1.65”/ Ø5.51 x 1.97“ / Ø7.09 x 2.36” / Ø9.05 x 2.56” Ø106 x 42mm / Ø140 x 50mm / Ø180 x 60mm / Ø230 x 65mm |
| MAX DAISY RUN | ON/OFF; DALI; TRIAC; 0-10V |
| SUPPLY VOLTAGE | 120V AC / 220-230V AC |
| CRI | 80, 90 |
